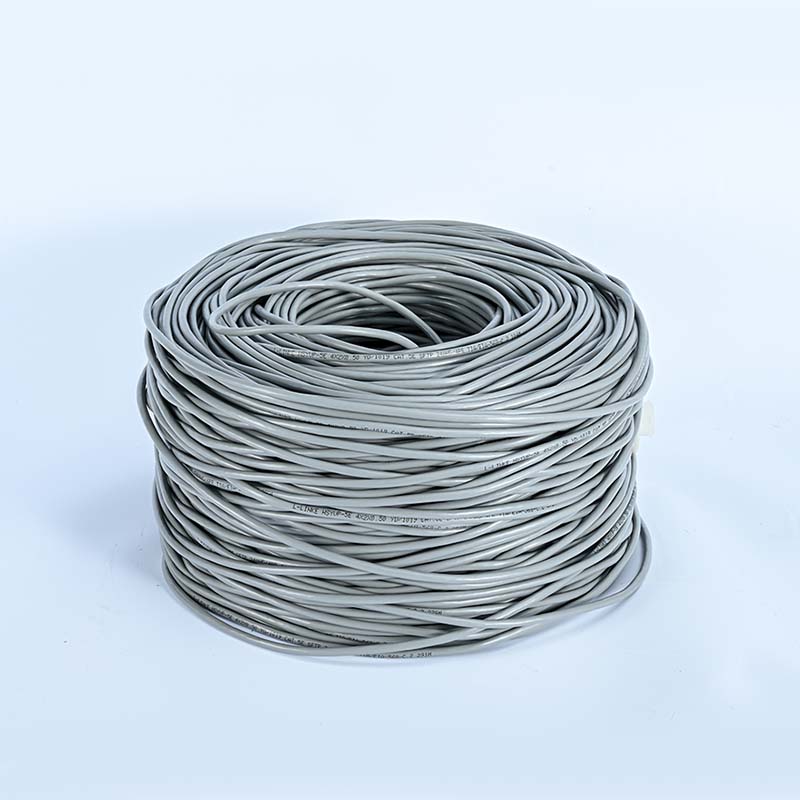

CAT5E SFTP LAN Ethernet Cable
  • CAT5E SFTP LAN Ethernet CableCAT5E SFTP LAN Ethernet Cable
  • CAT5E SFTP LAN Ethernet CableCAT5E SFTP LAN Ethernet Cable
  • CAT5E SFTP LAN Ethernet CableCAT5E SFTP LAN Ethernet Cable
  • CAT5E SFTP LAN Ethernet CableCAT5E SFTP LAN Ethernet Cable
  • CAT5E SFTP LAN Ethernet CableCAT5E SFTP LAN Ethernet Cable

CAT5E SFTP LAN Ethernet Cable

The following is an introduction to CAT5E SFTP LAN Ethernet Cable, I hope to help you better understand CAT5E SFTP LAN Ethernet Cable. Welcome new and old customers to continue to cooperate with us to create a better future together!

Send Inquiry

Product Description

CAT6 SFTP LSZH Jumper


CAT5E SFTP LAN Ethernet Cable Description:

Rated temperature: 70℃

Reference standard: ANSI/EIA/ TIA-568C &YD/T1019&IEC61156&UL444

Solid core bare copper conductor

Color identifies PE insulation

Tear rope (optional)

PVC or LSZH sheath or PE sheath

Packing: roll, box or shaft packing


Structure:

Conductor: 24AWG single solid core bare copper

Insulation: PE, OD 1.05mm reference

Cabling: 4 pairs of core wires twisted together + aluminum foil shielding, orange/white-orange, blue/white-blue, green/white-green, brown/white-brown

Outer quilt: PVC, LSZH, PE sheath, color optional, diameter 5.30mm for reference


Physical Properties:

Minimum static bending diameter: 8 times the outer diameter of the cable

Tear rope tension: ≥200N


Electrical Characteristics:

Single Conductor DC Resistance(max)

9.38 Ω/100m

Line-to-line DC resistance unbalance(max)

5 %

Dielectric strength between conductors(DC, 1min)

1 KV

Maximum insulation resistance

5000 MΩ/KV

Working Capacitance Max

5.6 nf/100m

Line-to-ground capacitance unbalance

330 pf/100m

Delay difference(max)

45ns/100m

Characteristic impedance

100±15Ω

Transmission rate

60 %


Transmission characteristics:

frequency
MHz

attenuation ATT
db/100m

RL
db,min

NEXT
db,min

PSNEXT
db,min

ACRF
db,min

PSACRF
db,min

PD
max,ns/100m

4

4.1

23.0

56.3

53.3

51.7

48.7

552

8

5.8

24.5

51.8

48.8

45.7

42.7

546.7

10

6.5

25.0

50.3

47.3

43.8

40.8

545.4

16

8.2

25.0

47.3

44.3

39.7

36.7

543

20

9.3

25.0

45.8

42.8

37.8

34.7

542

25

10.4

24.3

44.3

41.3

35.8

32.8

541.2

31.25

11.7

23.6

42.9

39.9

33.9

30.9

540.4

62.5

17

21.5

38.4

35.4

27.8

24.8

538.6

100

22

20.1

35.3

32.3

23.8

20.8

537.6
