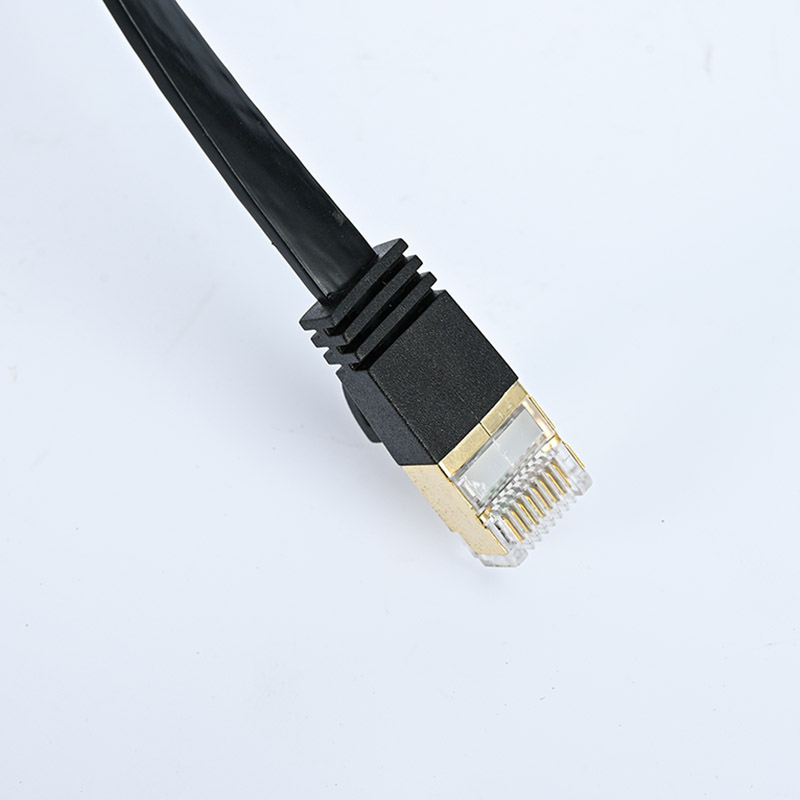

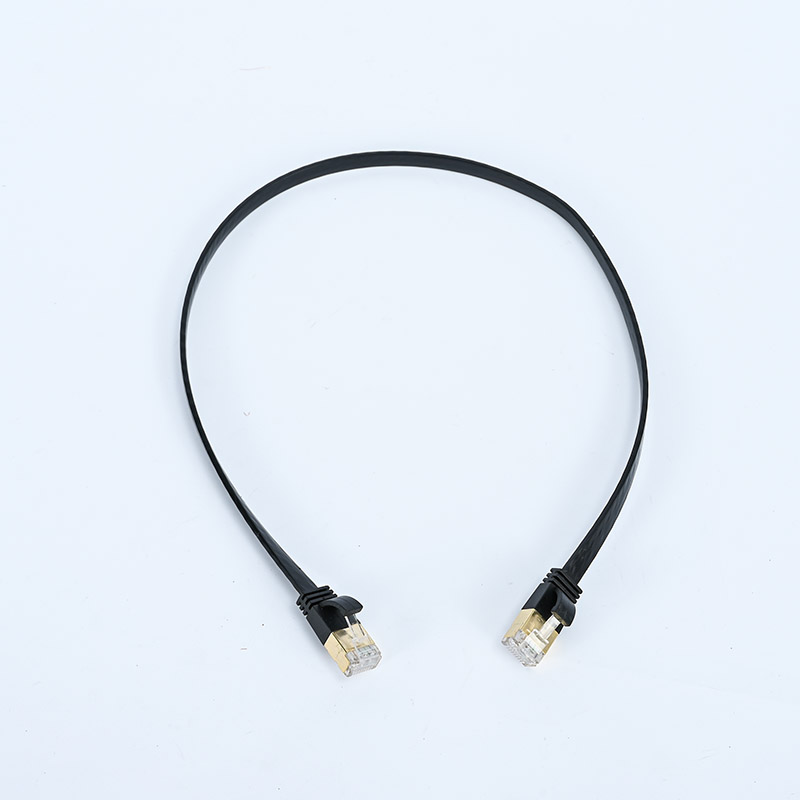

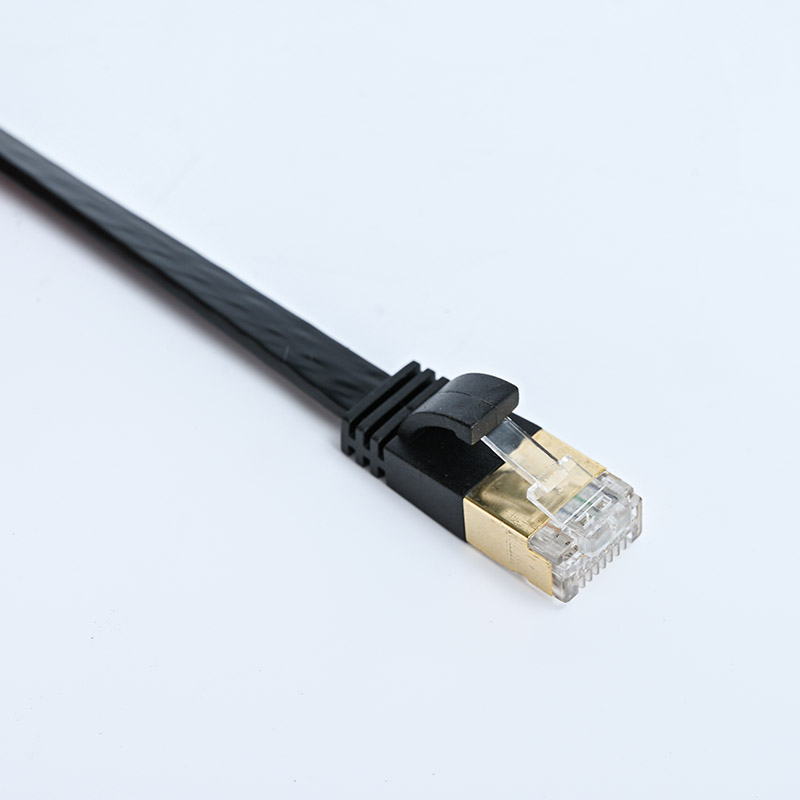

CAT6A FTP Flat Patch Cord
The following is an introduction to CAT6A FTP Flat Patch Cord, I hope to help you better understand CAT6A FTP Flat Patch Cord. Welcome new and old customers to continue to cooperate with us to create a better future together!
Send Inquiry
Product Description
CAT6A FTP Flat Patch Cord Description:
Rated temperature: 70℃
Reference standard: ANSI/EIA/ TIA-568C &YD/T1019&IEC61156&UL444
11801,IEC61163
Solid core bare copper conductor
Color identifies PE insulation
Tear rope (optional)
PVC or LSZH or PE sheath
Packing: roll packing or shaft packing
Product Structure:
Meet standards: ANSI/TIA-568-C.2, YDT1019-2013, IEC-61156-5-2009
Conductor: 23AWG single solid core bare copper
Insulation: PE, od 1.15mm reference
Cable forming: 4 pairs of core wires set, cross skeleton filled, orange/white orange, blue/white blue, green/white green, brown/white brown
Tape: PET
Ground wire: single tinned copper wire
Shielding: aluminum foil mylar belt, aluminum face inward
Outer cover: PVC, LSZH, PE sheath, color optional, diameter 7.2mm reference
Physical characteristics:
Minimum static bending diameter: 8 times cable diameterTearing rope tension: ≥200N
Electrical characteristics:
|
Single Conductor DC Resistance（max） |
9.38 Ω/100m |
|
Line-to-line DC resistance unbalance（max） |
5% |
|
Dielectric strength between conductors（DC,1min） |
1KV |
|
Maximum insulation resistance |
5000MΩ/KM |
|
Working Capacitance Max |
5.6nf/100m |
|
Line-to-ground capacitance unbalance |
330pf/100m |
|
Delay difference（max） |
45ns/100m |
|
Characteristic impedance |
100±15Ω |
|
Transmission rate |
60 % |
Transmission characteristics:
|
frequency |
ATT |
RL |
NEXT |
PSNEXT |
ELFEXT |
PSELFEXT |
PD |
|
4 |
3.8 |
23.0 |
65.3 |
63.3 |
55.8 |
52.8 |
552 |
|
8 |
5.3 |
24.5 |
60.8 |
58.8 |
49.7 |
46.7 |
546.7 |
|
10 |
6.0 |
25.0 |
59.3 |
57.3 |
47.8 |
44.8 |
545.4 |
|
16 |
7.6 |
25.0 |
56.2 |
54.2 |
43.7 |
40.7 |
543 |
|
20 |
8.5 |
25.0 |
54.8 |
52.8 |
41.8 |
38.8 |
542 |
|
25 |
9.5 |
24.3 |
53.3 |
51.3 |
39.8 |
36.8 |
541.2 |
|
31.25 |
10.7 |
23.6 |
51.9 |
49.9 |
37.9 |
34.9 |
540.4 |
|
62.5 |
15.4 |
21.5 |
47.4 |
45.4 |
31.9 |
28.9 |
538.6 |
|
100 |
19.8 |
20.1 |
44.3 |
42.3 |
27.8 |
24.8 |
537.6 |
|
200 |
29.0 |
18.0 |
39.8 |
37.8 |
21.8 |
18.8 |
536.5 |
|
250 |
32.8 |
17.3 |
38.3 |
36.3 |
19.8 |
16.8 |
536.3 |
